POCT Analyzer
 about

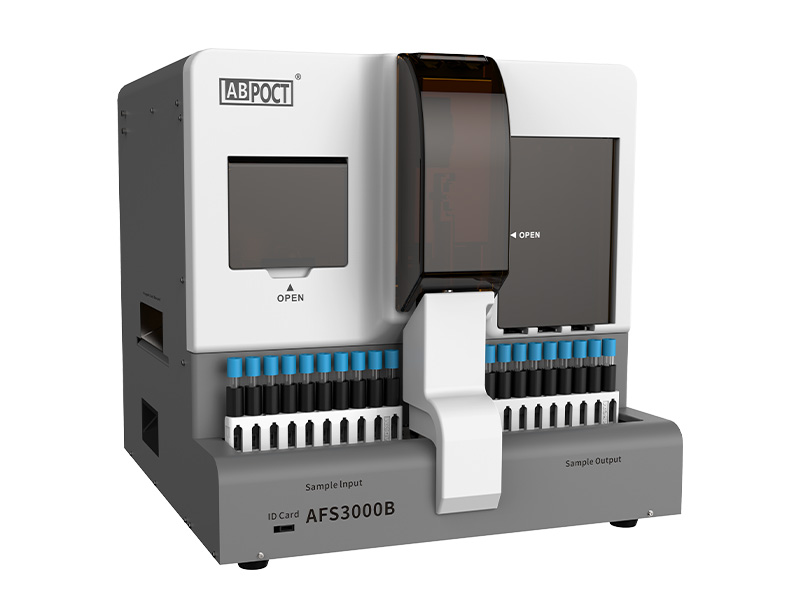

AFS3000B Fluorescence Immunoassay Analyzer

1.Automatic operation, precise program control, efficient and reliable

2.Automatic identification of samples,accurate matching of testing items

3.The instrument automatically punctures and takes samples

4.Realize the automatic detection of the whole process and avoid the risk of aerosol infection to the greatest extent.

5.Double anti-collision pin design,effectively improve the accuracy of thewhole operation



Feature

The vacuum blood collection tube is directly loaded in the instrument. The unique track structure supports 30 (3*10) blood collection tubes, and the instrument automatically punctures and takes samples, which can realize the automatic detection of the whole process and avoid the risk of aerosol infection to the greatest extent.

Feature / Parameter Specification
Principle Fluorescence immunoassay
Sample Type Whole blood / Serum / Plasma / Urine / Others
Reading Time / Speed 60 T/h
Repeatability < 1% (Fluorescence standard card T/C > 0.1)
Sampling Method Puncture, level detection
Sample Tube Types 2ml vacuum blood collection tube, 0.5ml peripheral blood collection tube, 5ml vacuum blood collection tube, 0.5ml bullet, 1.5ml bullet
Reaction Cup Loading 10 pieces * 10 bits * 1000 µL
Incubation 10
Analyzer Size 544 mm * 583 mm * 510 mm
Weight 58 kg
